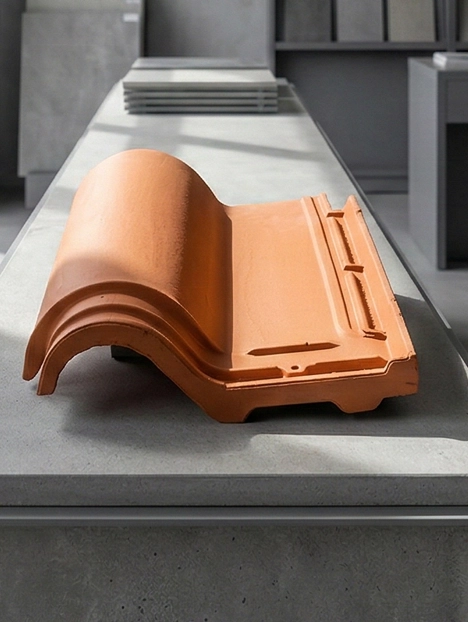

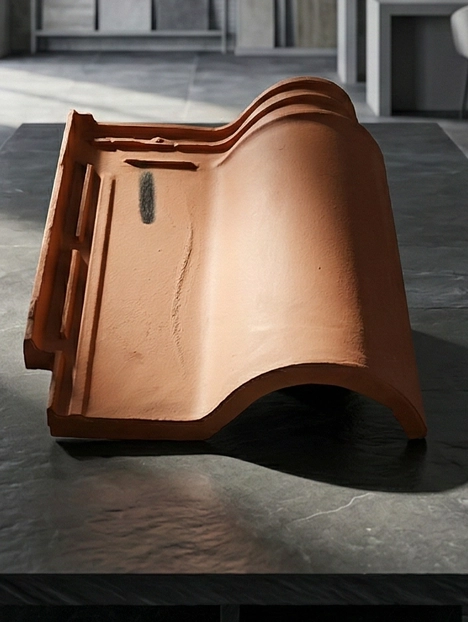

Product Specification: Interlocking Roofing Tile
| Specification | Value |
|---|---|
| Length (mm) | 397 ± 2 |
| Width (mm) | 317 ± 2 |
| Cover Length (mm) | 341 ± 2 |
| Cover Width (mm) | 267 ± 2 |
| Max. Weight (kg) | 4.5 |
| Weight per Sq. m (kg) | 49.43 |
| Tile Required per Sq. m | 11.0 |
| Breaking Strength - Dry (N) | > 1600 |
| Breaking Strength - Wet (N) | > 1200 |
| Water Absorption (%) | < 10 |
| Batten Gap (mm) | 342 |
| Roof angle Min (°) | 25 |
