S - Type Tile

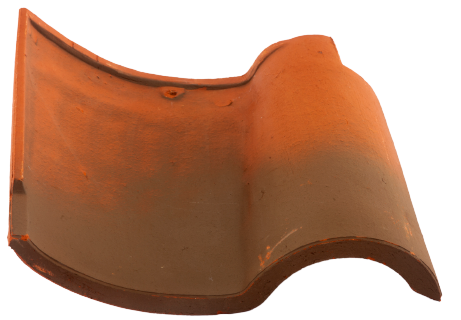

S1 Autumn Blend
S1 Natural
S1 Restotration
Accessories

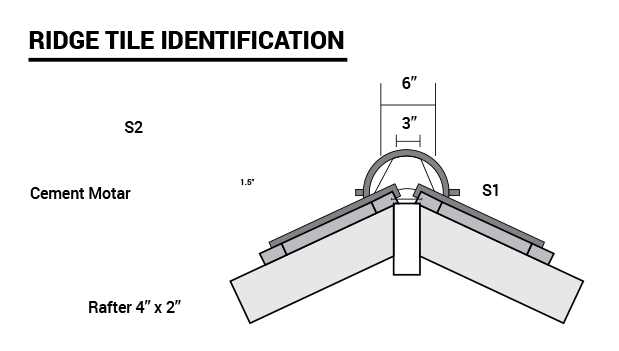

S-2 Ridge Tile
S-3 Gable Left Tile
S-4 Gable Right Tile
S-5 Corner Tile
Colour Range
Black Matt
Coffee Brown
Sypres
Blue
Off White
Grey
Autumn Blend
Green
Tile Specification
| Length | 310 mm ± 3 mm |
| Width | 307mm ± 3 mm |
| Effective Length | 260 mm ± 2 mm |
| Effective Width | 250 mm ± 3 mm |
| Max Weight | 3.2 kg ± 0.05 kg |
| Water Absorption | < 10% |
| Dry Transverse Breaking Load | >2500N/mm2 |
| Coverage | 140 tiles per 100 sq.ft |
| Water Permeability | No formation of water droplets within 6 hours |
| Color Range | Black Matt | Coffee Brown | Sypres | Blue | Off White | Grey | Autumn Blend | Green |
S-Type Tile

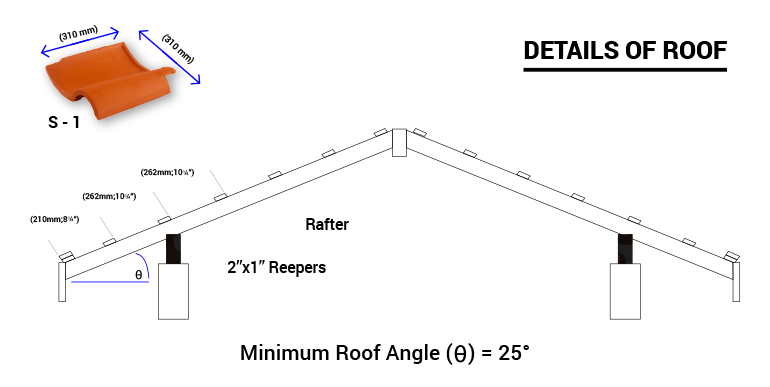

Rafter Specification
| Rafter Section | 4" x 2" | 5" x 2" | 6" x 2" |
| Roof Angle(⊖) | Rafter Span (L) | ||
| 25° Minimum | 8' | 8' to 12' | 8' to 12' |
| 25° and Above | 8' | 8' to 10' | 8' to 12' |
S-Type Tile
